Compost toilet 12v self stirring with urine piped/soak away
PLEASE CONTACT US FOR A LEAD TIME BEFORE ORDERING

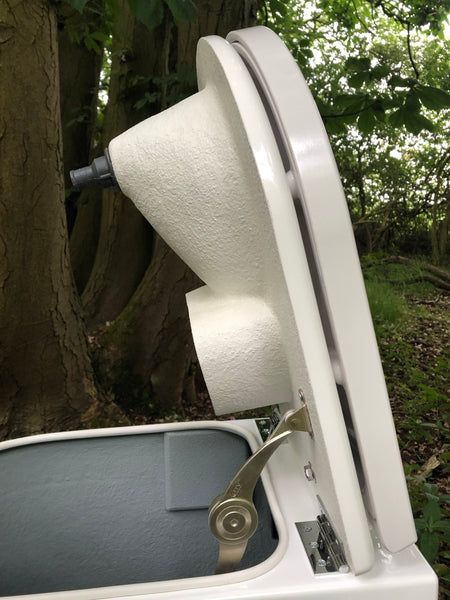

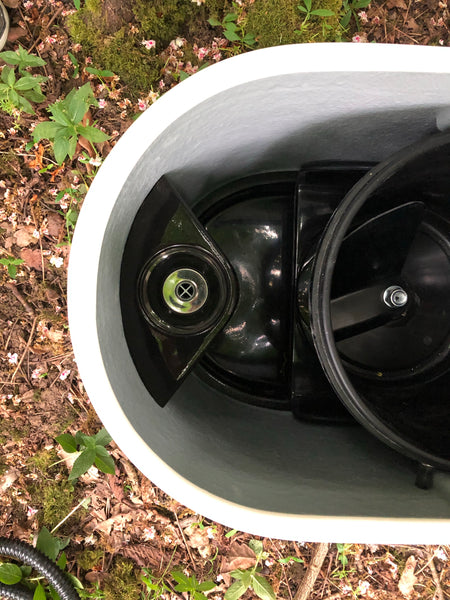

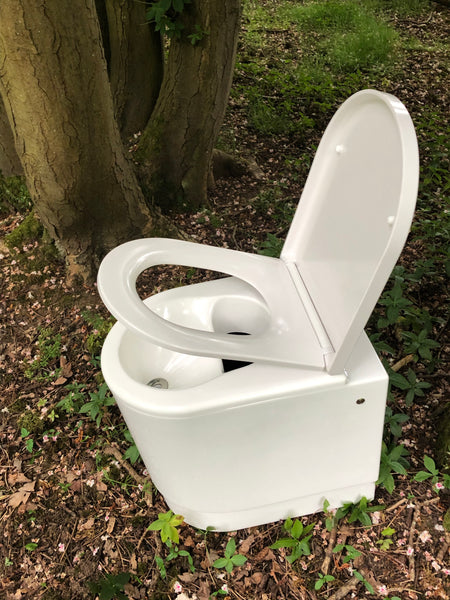

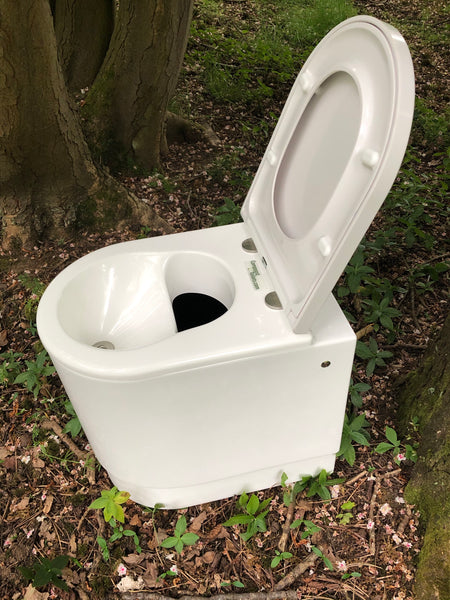

The diverter and toilet base is all made from tough easy clean fiberglass. The toilet seat is soft close and is easily removed by the push of a button for cleaning purposes. When the toilet seat is lifted the diverter has been designed to have a larger urine area for males to stand up. When closed it looks like the toilet you would have in your own home.

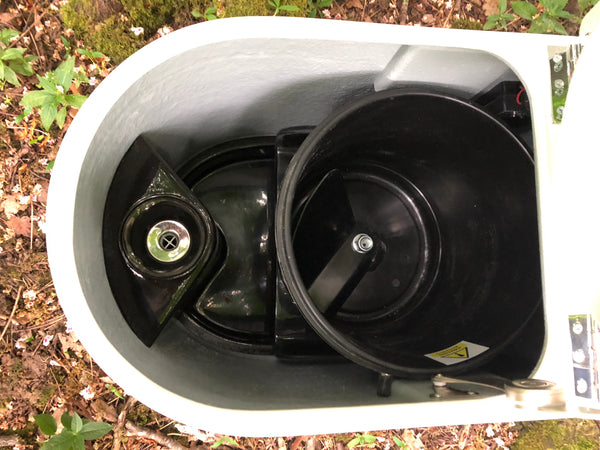

There is no need to sprinkle sawdust, compost, wood shavings etc as it’s self stirring at the press of a button. the button starts a 20 second cycle that rotates a paddle at the bottom of the bucket. We start the bottom of the bucket off with approximately 2 litres of medium. We do sell a modesty cover if required.
The button can be pressed as you use the toilet as it ends up stirring smaller balls of compost around in the bucket than one larger ball. we try to limit the amount of tissue and have found that moist toilet tissue works well as there is a little bit more weight in the paper that allows it to get stirred in as normal paper tends to hover over the surface.
On average you could get 10 uses in the solids container before it needs to be simply lifted out and emptied, this is to keep the motor running to its optimum performance. there is a resettable trip switch to protect the motor if it is overloaded.

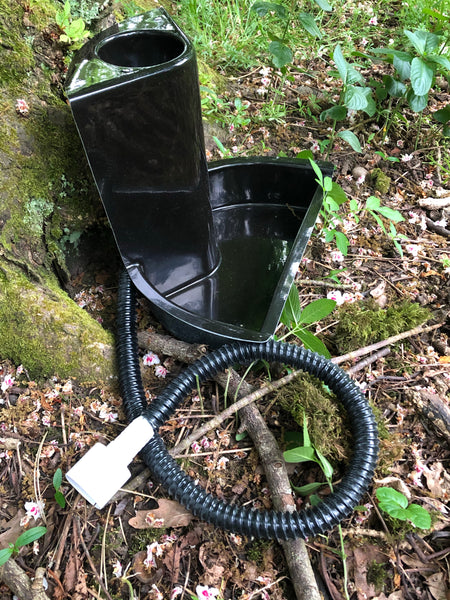

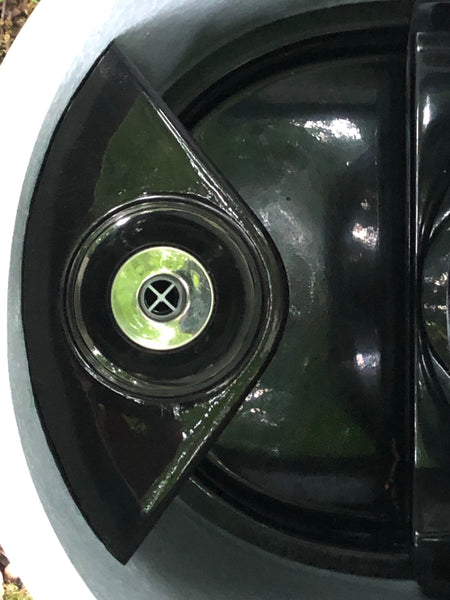

The urine piped/soak away model has a slightly different diverter channeling the liquids nearer the front of the toilet, this gives room on the inside to remove the solids container. It is then funnelled and piped away using 1 meter of 20mm inside diameter tubing. There is a hole positioned on the back at floor level to exit the urine pipe, this can be drilled directly through the floor of the toilet if required. It is supplied with a spigot adapter that will then connect to domestic 40mm waste pipe.
There is a 12v fan which eliminates smells, the fan can exit the toilet from the bottom, back or sides depending on your preferred route. This can be ducted to the outside by using standard rainwater down pipe and associated fittings. We also supply flexible hose to make the installation a bit easier The fan is to run continuously to eliminate moisture and a build up of condensation.
The power consumption is 30w per 20 second stirring cycle. The fan is to run continuously at 0.36w
A carbon filter can be used to eliminate having to cut holes to the outside. It has a lifespan of between 9 to 18 months.
The toilet comes complete with fan, and stirring bucket.
Other items can be purchased separately to include:-
Carbon filter
Anti splash screen
Modesty cover
Non stirring bucket complete with handle and lid
Spare urine bottle with cap
We can also supply a spares/service pack to include:-
Motor (plug and play
Fan
Dimensions are approximately
370mm wide
545mm deep
510mm height (lid closed)
495mm height to the seat.
All of Compoost Toilets®️designs are registered designs to protect them from being copied.
